AgroMax Raw 550 3000K & 4000k

AgroMax Raw 550 3000K


AgroMax Raw 550 3000K & 4000k

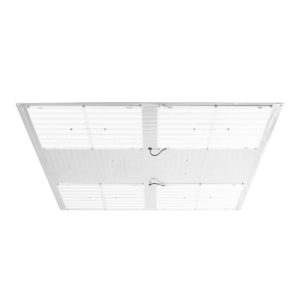

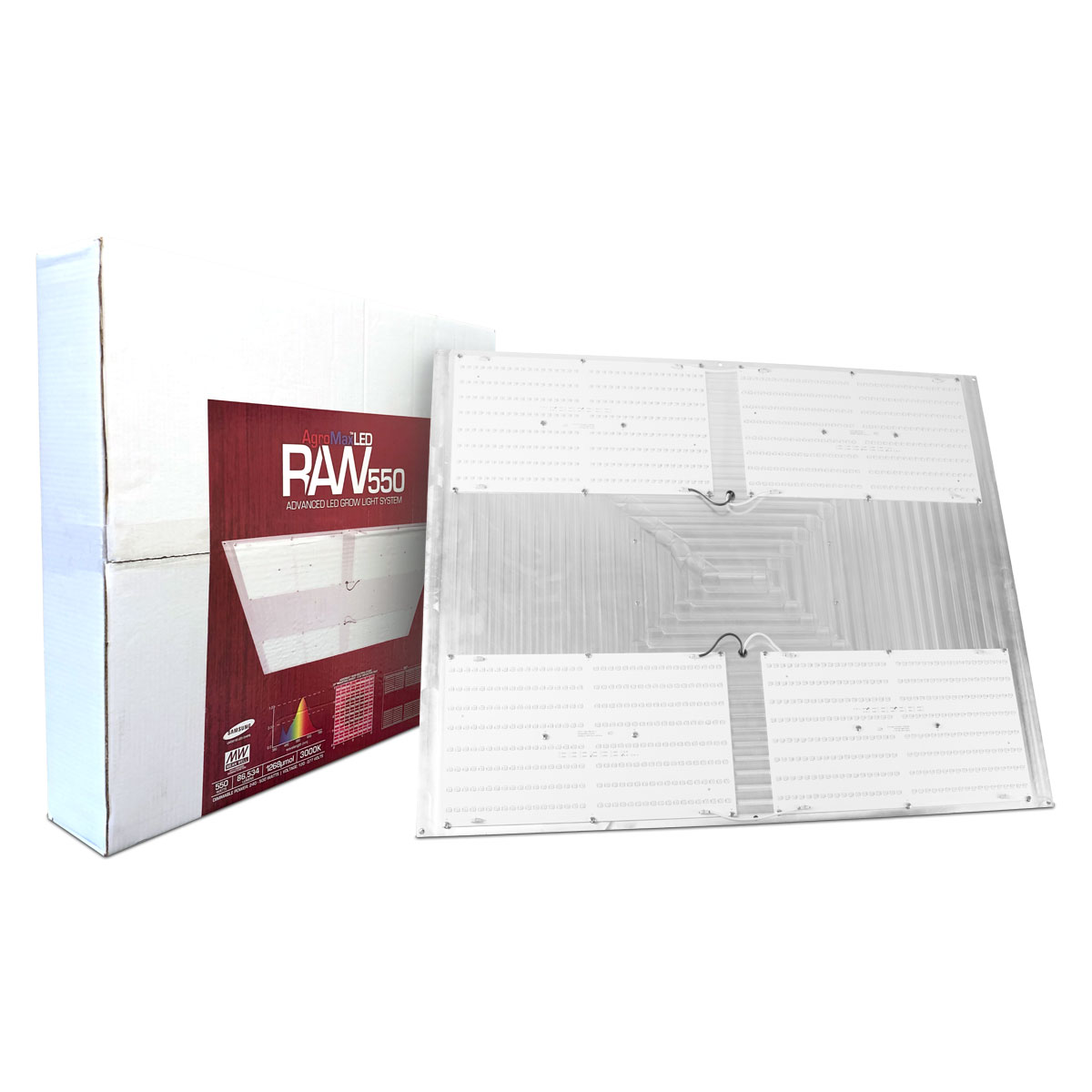

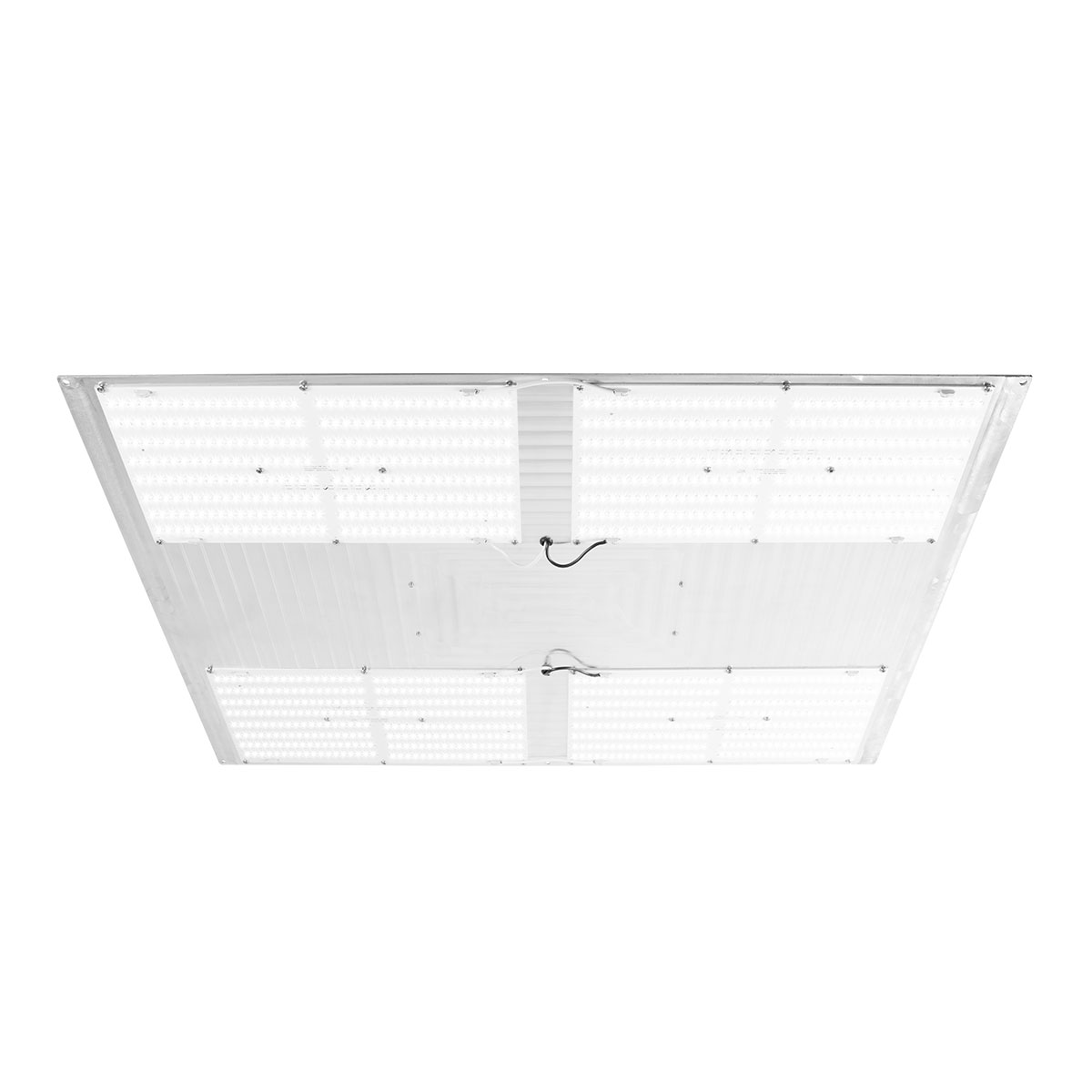

AgroMax RAW 550 fixtures pair top-shelf Samsung LED Chips with a premium Meanwell driver to deliver industry-leading LED grow light technology. They produce an impressive 2.5 micromole/watt output that is more than capable of supporting 6′ x 6′ of growth space or 4′ x 4′ of blooming coverage. Designed with a sturdy aluminum heat sink and dust/water-resistant conformal coating the AgroMax RAW is also well equipped to withstand conditions in the cultivation environment. These features make the AgroMax RAW 550 one of the most efficient and effective LED lighting solutions for high-value crop applications.

RAW Efficiency

The AgroMax RAW 550 is designed from the ground up to maximize the power of Samsung LED chips and Meanwell driver. With an incredible PPFD of 2.5 umol/watt, the RAW 550 delivers more light per watt making it one of the most efficient grow lights available.

RAW Durability

To protect the panel’s circuitry, a thin polymer layer is applied to seal electric connections. This feature ensures that dirt, dust, water, and corrosion don’t damage your fixture. Replacing an LED fixture can be expensive, and a conformal coating protects against accidental water damage.

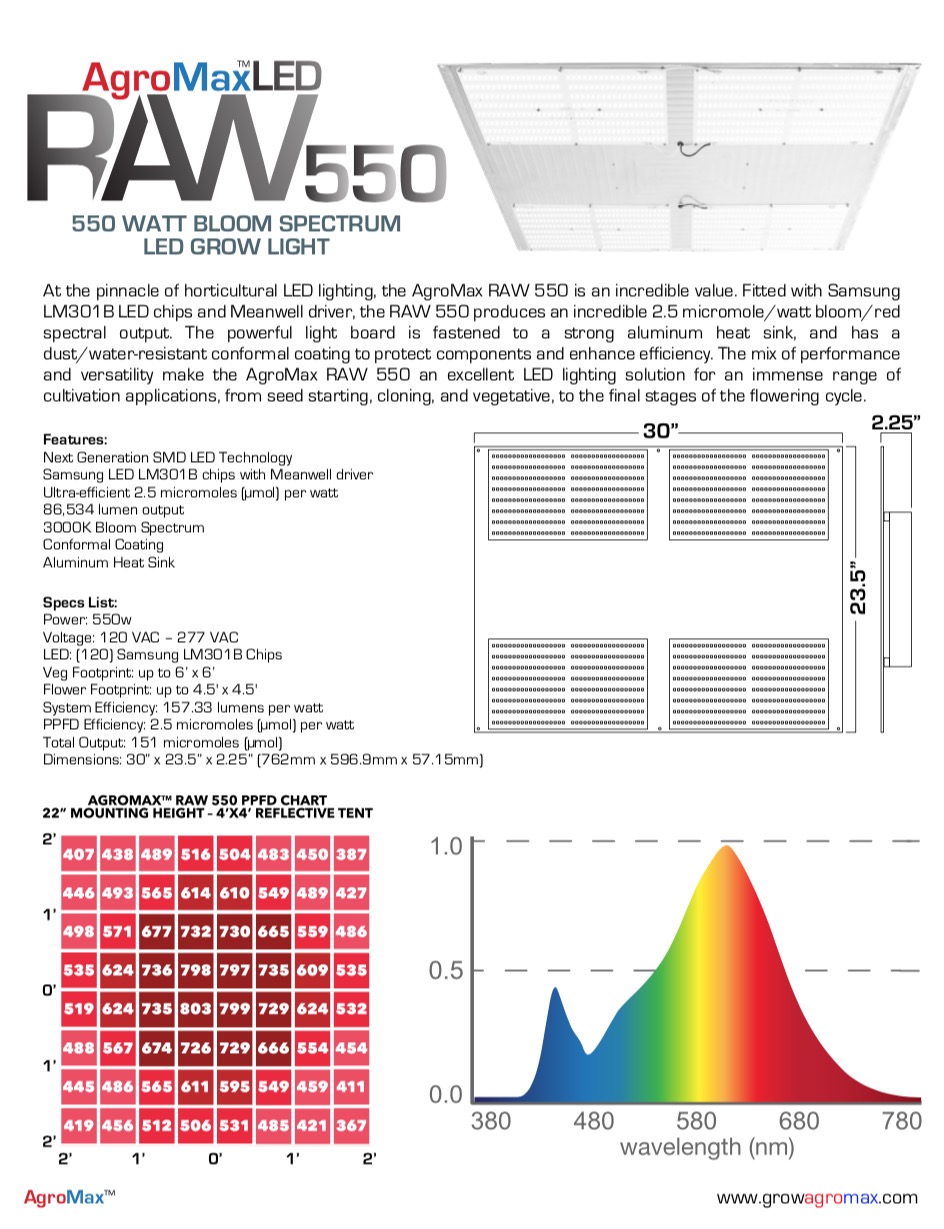

3000K & 4000K Specifications

  • Next-generation SMD LED technology
  • Samsung LED LM301B chips with Meanwell drivers
  • Larger coverage area and better light distribution
  • 86,534 Lumen output 3000K or 4000k Spectrum
  • Conformal coating protects circuitry from moisture
  • Aluminium heat sink to enhance cooling and improve durability
  • Power- 240-500 Watts
  • Voltage Range- 90-277 volts
  • LED- Samsung LM301B

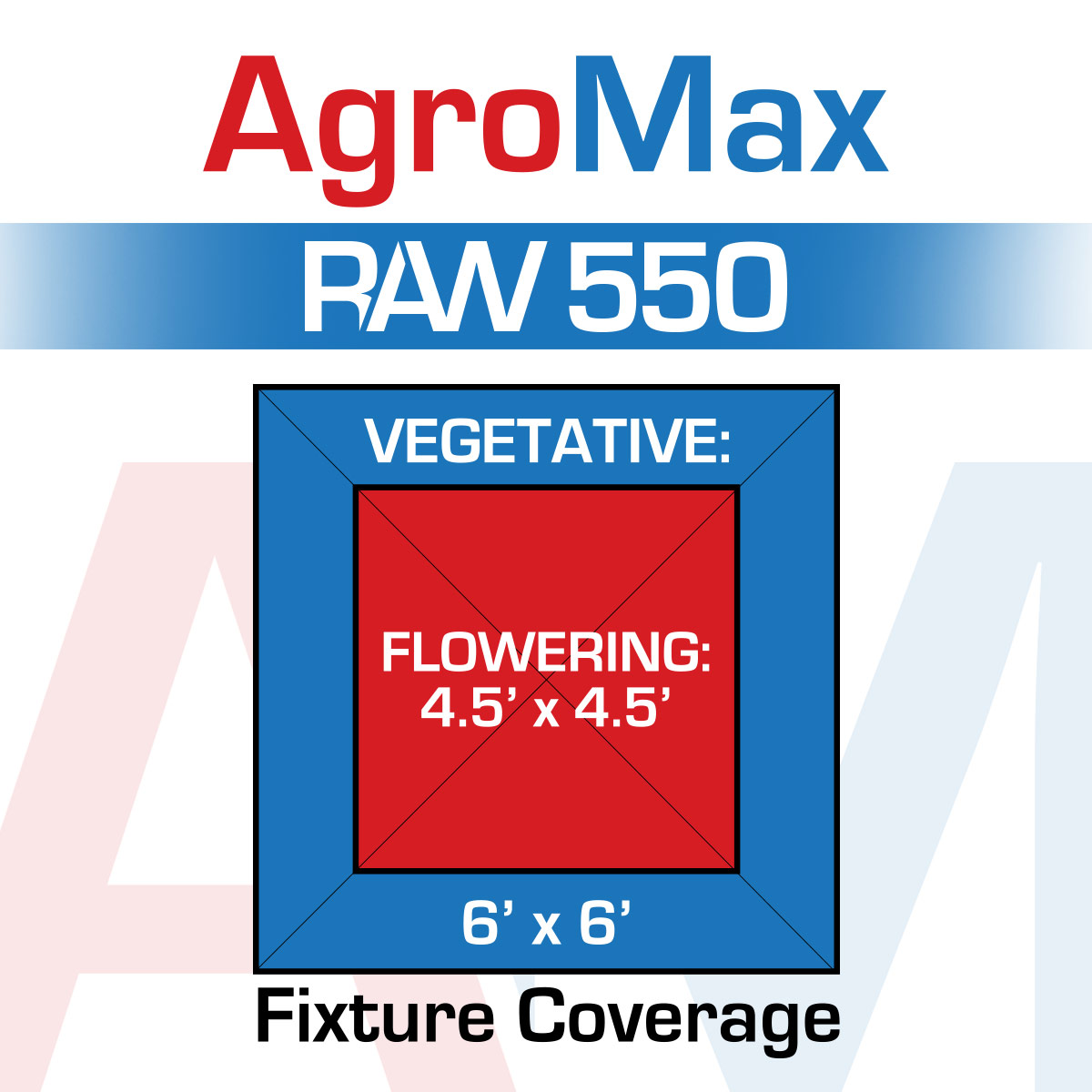

  • Flowering Footprint- 4.5’X4.5′
  • Veg Footprint- 6’X6′
  • System Efficiency- 174 Lm/W

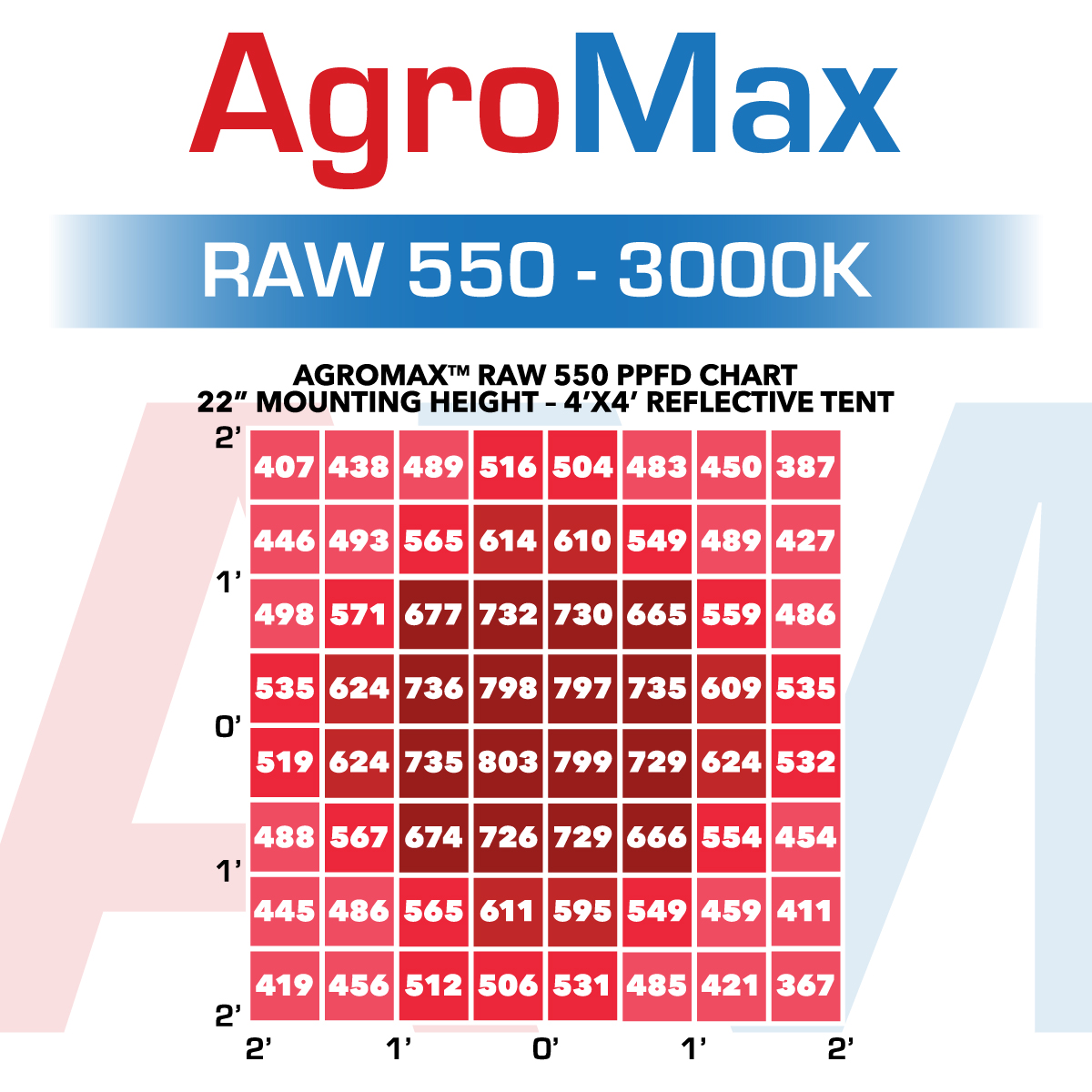

  • System PPF Efficacy- UP TO 2.5 μmol/watt
  • Total output- 1268 PPF
  • Dimensions- 30x23x2
  • Recommended Mounting Height- 22-32 inches

  • AgroMax RAW 550 FLOWER LED Grow Light

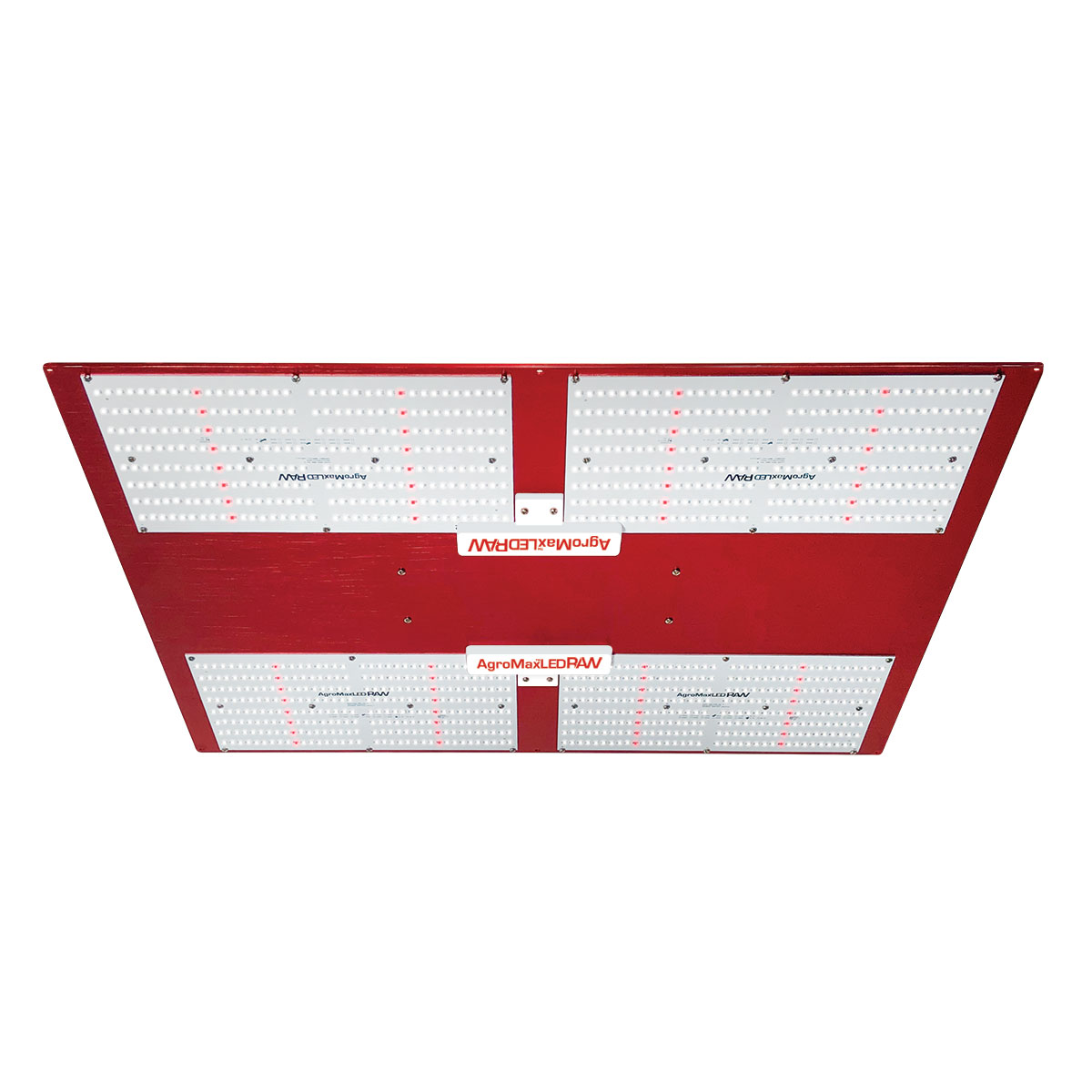

    The AgroMax RAW 550 FLOWER is built specifically to maximize your flowering yields in the grow room. With coverage up to 6′ x 6′ for vegetative growth and 4.5′ x 4.5′ for flowering, the RAW 550 FLOWER will outperform the competition for your indoor plants. Its full-spectrum white Samsung LM301B LED chips are combined with select bin 660nm Reds, powered by a Meanwell driver, producing an impressive 2.5 micromole/watt output. An extra-thick anodized-aluminum heat sink and dust+water-resistant conformal coating mean the AgroMax RAW is also well equipped to withstand conditions in the cultivation environment. These features make the AgroMax RAW 550 FLOWER one of the most efficient and effective LED lighting solutions for high-value crop applications.

    Features:

  • Next-generation SMD LED technology
  • Samsung LED LM301B & 660nm Red with Meanwell driver
  • Ultra-efficient 2.5 micromoles (μmol) per watt
  • 81,060 lumen output

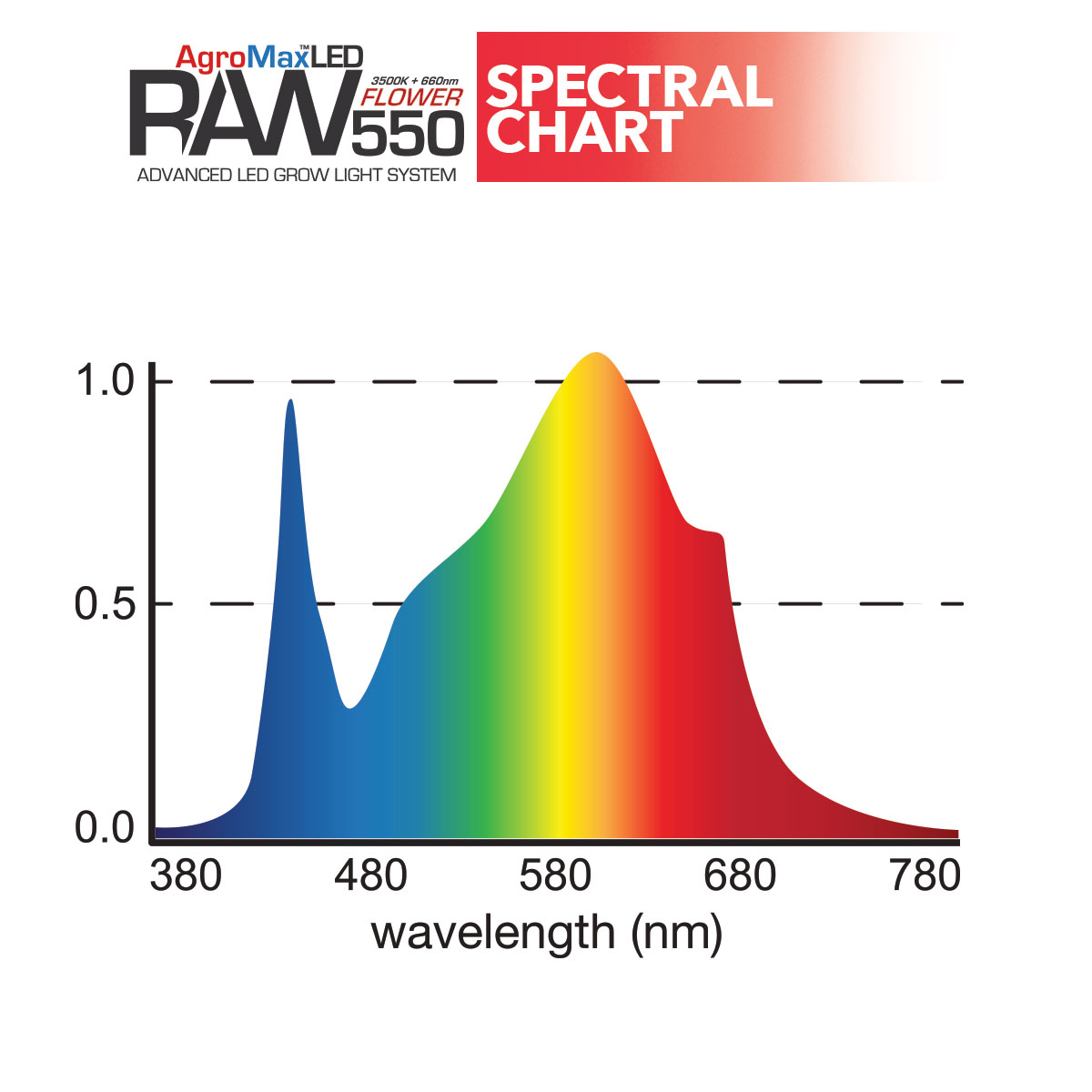

  • FLOWER Spectrum
  • Conformal coating
  • Aluminum heat sink
  • 3-year warranty
  • Specs List:

  • Power: 550w
  • Voltage: 90 VAC – 264 VAC
  • LED: Samsung LM301B White, 660nm Red
  • Veg Footprint: up to 6′ x 6′
  • Flower Footprint: up to 4.5′ x 4.5′
  • PPFD Efficiency: 2.5 micromoles (μmol) per watt
  • Total Output: 1256 micromoles (μmol /PPF)

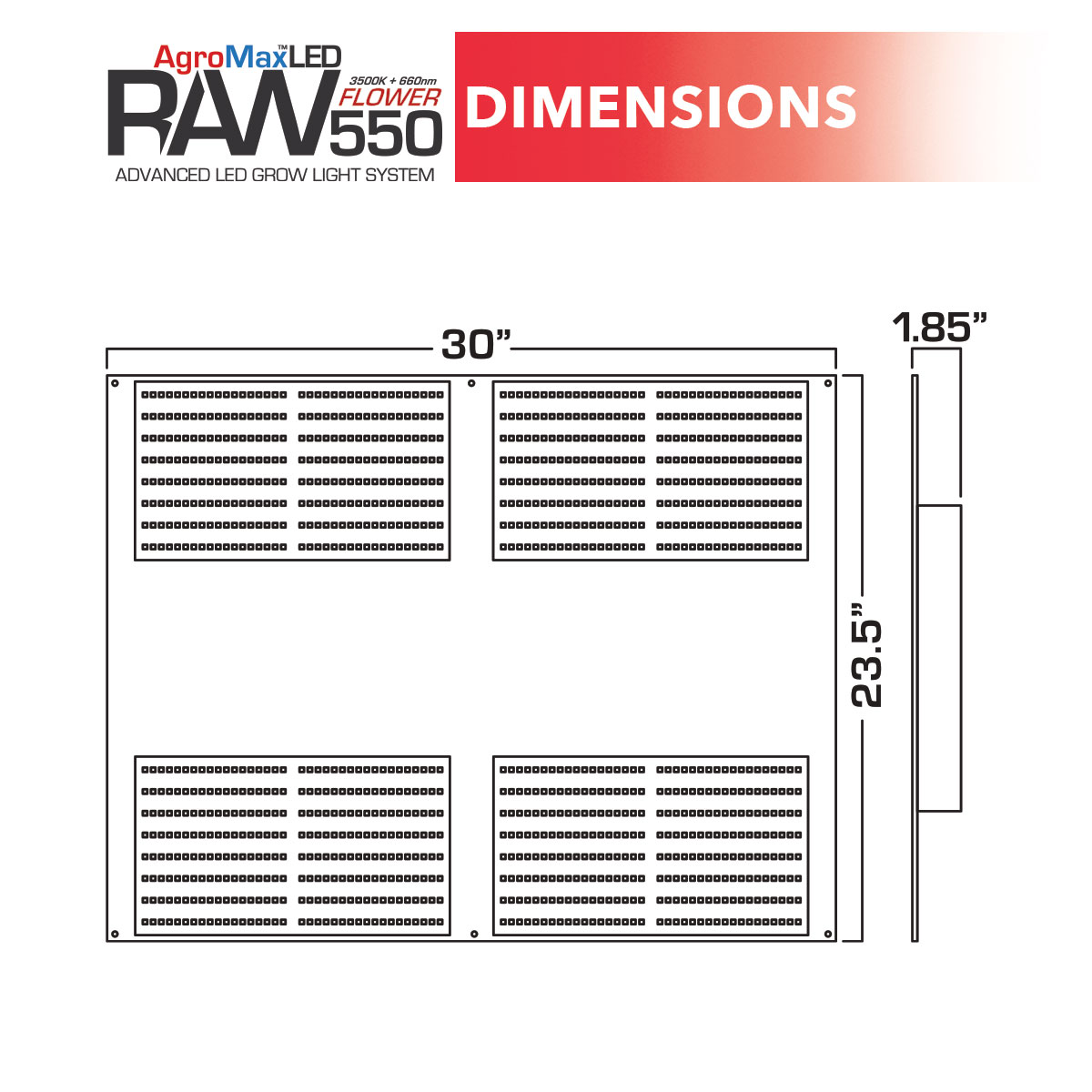

  • Dimensions: 30″ x 23″ x 2.5″
  • Recommended mounting height: 22-32 inches
